zásobování energií: Síťový provoz / PoE (napájení přes Ethernet)
Provoz na baterie: ne
WLAN-Standard: IEEE 802.11a/b/g/n/ac/ax
Frekvence: 2,4 / 5 GHz
Počet Gigabit-Portů: 1
Kódování: WPA / WPA2 / WPA3
PoE (Power over Ethernet): ano
Typ: Access-Point
Anténa: interní
Zisk antény (dBi): 5 / 6
Max. přenosová rychlost WLAN (Mbit/s): 575 + 1200
Barva: bílá
Rozměry: 180 x 180 x 39
Hmotnost (g): 453

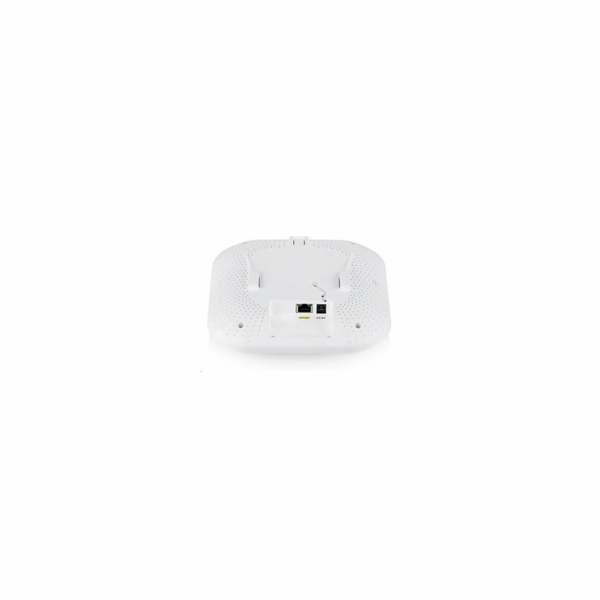

Zyxel NWA110AX
The NWA110AX is a 802.11ax (WiFi 6) Dual-Radio PoE Access Point with the next generation of wireless for businesses looking for a most economical upgrade path to WiFi 6. The integrated second generation WiFi 6 chipset (Qualcomm 802.11ax 2.0) supports the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO.
Features:
802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless:
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed: 575Mbps (2.4GHz), 1200Mbps (5GHz)
Frequency band: 2.4 GHz (IEEE 802.11 b/g/n), 5 GHz (IEEE 802.11 a/n/ac)
Bandwidth: 20-, 40- and 80-MHz
RF Design:
Antenna type: 2x2 MIMO optimized Antenna
Antenna gain: 2.4GHz: Peak Gain 5dBi, 5GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm
WLAN Features:
Band Steering, WDS/Mesh (V6.10), DCS, Load balancing
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
Security:
Wireless Security: WEP, WPA, WPA2-PSK, WPA3
Authentication: WPA, WPA2-Enterprise, EAP, IEEE 802.1X, RADIUS authentication
Access management: L2-isolation, MAC filtering
Networking: IPv6, VLANs, WMM, U-APSD, DiffServ marking
Management:
Operating mode: Nebula Cloud managed, Standalone
ZON Utility: Discovery of Zyxel switches, APs and gateways, Centralized and batch configurations
Zyxel Wireless Optimizer: WiFi AP planning, WiFi coverage detection, Wireless health management
Web UI/ CLI: Yes
SNMP: Yes
Physical Interfaces: 1x 10/100/1000M LAN Ethernet port with PoE
Power:
PoE (802.3at): power draw 17 W
DC input : 12V DC / 1.5A
Dimensions (WxDxH) (mm): 180 x 180 x 39
Weight (g): 453
