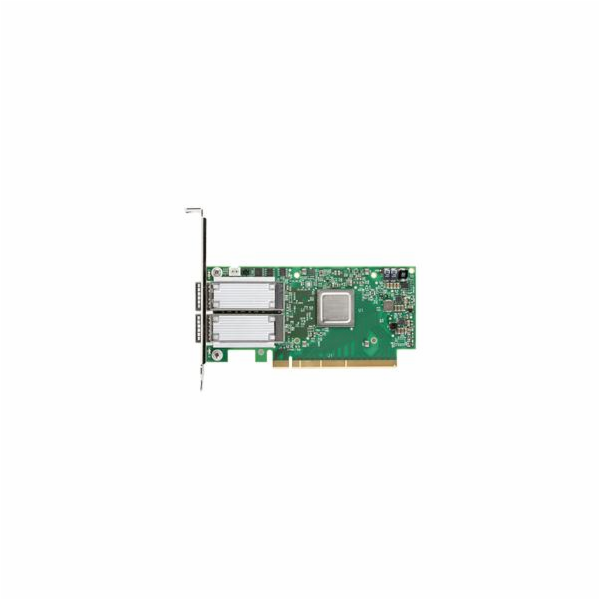

Nvidia Mellanox ConnectX®-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6

Mellanox MCX516A-CCAT ConnectX-5 EN Network Interface Card 100GbE Dual-Port QSFP28 PCIe3.0 x16 Tall Bracket ROHS R6


ConnectX-5 EN supports two ports of 100Gb Ethernet connectivity, sub-600 ns latency, and very high message rate, plus PCIe switch and NVMe over Fabric offloads, providing the highest performance and most flexible solution for the most demanding applications and markets: Machine Learning, Data Analytics, and more.

HPC Environments

ConnectX-5 delivers high bandwidth, low latency, and high computation efficiency for high performance, data intensive and scalable compute and storage platforms. ConnectX-5 offers enhancements to HPC infrastructures by providing MPI and SHMEM/PGAS and Rendezvous Tag Matching offload, hardware support for out-of- order RDMA Write and Read operations, as well as additional Network Atomic and PCIe Atomic operations support.

ConnectX-5 EN utilizes RoCE (RDMA over Converged Ethernet) technology, delivering low-latency and high performance. ConnectX-5 enhances RDMA network capabilities by completing the Switch Adaptive-Routing capabilities and supporting data delivered out-of- order, while maintaining ordered completion semantics, providing multipath reliability and efficient support for all network topologies including DragonFly and DragonFly+.

ConnectX-5 also supports Burst Buffer offload for background checkpointing without interfering in the main CPU operations, and the innovative transport service Dynamic Connected Transport (DCT) to ensure extreme scalability for compute and storage systems.


Review the Product Brief: ConnectX-5 EN Ethernet Adapter Cards




General Information


Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MCX516A-CCAT
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: ConnectX-5 EN
Product Model: MCX516A-CCAT
Product Name: ConnectX-5 EN MCX516A-CCAT 100Gigabit Ethernet Card
Product Type: 100Gigabit Ethernet Card


Interfaces/Ports


Host Interface: PCI Express
Total Number of Ports: 2


I/O Expansions


Expansion Slot Type: QSFP


Media & Performance


Media Type Supported: Optical Fiber


Network & Communication


Network Technology: 100GBase-X


Physical Characteristics


Form Factor: Plug-in Card
Width: 5.6"
Depth: 2.7"


Miscellaneous


Device Supported: Server
Environmentally Friendly: Yes
Environmental Certification: RoHS-6




Technology:              Ethernet



Max Speed:              100GbE



Ports:                       Dual



Connector Type:        QSFP28/QSFP+/QSFP



PCI:                          PCIe3.0 x16
