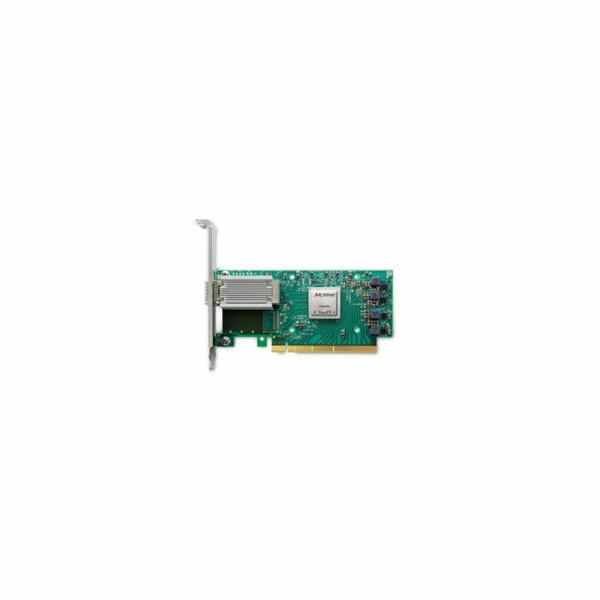

Nvidia Mellanox ConnectX®-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6

Mellanox MCX515A-CCAT ConnectX-5 EN Network Interface Card 100GbE Single-Port QSFP28 PCIe3.0 x16 Tall Bracket ROHS R6

Mellanox ConnectX-5 Single/Dual-Port Adapters supporting 100Gb/s

Intelligent ConnectX-5 EN adapter cards introduce new acceleration engines for maximizing High Performance, Web 2.0, Cloud, Data Analytics and Storage platforms.

ConnectX-5 supports two ports of 100Gb/s Ethernet connectivity, sub-700 nanosecond latency, and very high message rate, plus PCIe switch and NVMe over Fabric offloads, providing the highest performance and most flexible solution for the most demanding applications and markets.

General Information


Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MCX515A-CCAT
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: ConnectX-5 EN
Product Model: MCX515A-CCAT
Product Name: ConnectX-5 EN Network Interface Card
Product Type: 100Gigabit Ethernet Card


Interfaces/Ports


Host Interface: PCI Express 3.0 x16
Total Number of Ports: 1


I/O Expansions


Expansion Slot Type: QSFP+


Media & Performance


Media Type Supported: Optical Fiber


Network & Communication


Network Technology: 100GBase-X


Physical Characteristics


Form Factor: Plug-in Card
Height: 2.7"
Width: 5.6"


Miscellaneous


Device Supported: Server
Environmentally Friendly: Yes
Environmental Certification: RoHS-6




Technology:

Ethernet



Max Speed:

100GbE



Ports:

Single



Connector Type:

QSFP28/QSFP+/QSFP



PCI:

PCIe3.0 x16
