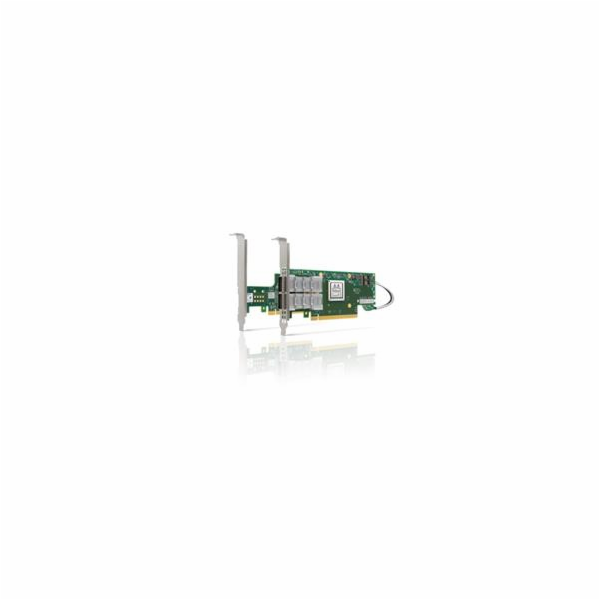

Nvidia Mellanox ConnectX®-6 VPI adapter card kit, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.

Mellanox MCX654106A-HCAT ConnectX-6 VPI Adapter Card Kit HDR IB (200Gb/s) and 200GbE Dual-Port QSFP56 Socket Direct 2x PCIe3.0 x16 Tall Brackets

World's first 200Gb/s HDR InfiniBand and Ethernet network adapter card*, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for High-Performance Computing, Cloud, Web 2.0, Storage and Machine Learning applications.

ConnectX-Virtual Protocol Interconnect (VPI) is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity*, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.

In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of enhancements to further improve performance and scalability.

ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.*

*ConnectX-6 VPI Adapters firmware currently supports InfiniBand Gen 3 only and up to 100GbE. Support for 200GbE scheduled for production release in December 2019.


Condition:

New



Technology:

InfiniBand



Connector Type:

QSFP56



Max Speed:

HDR & 200GbE



Ports:

Dua
