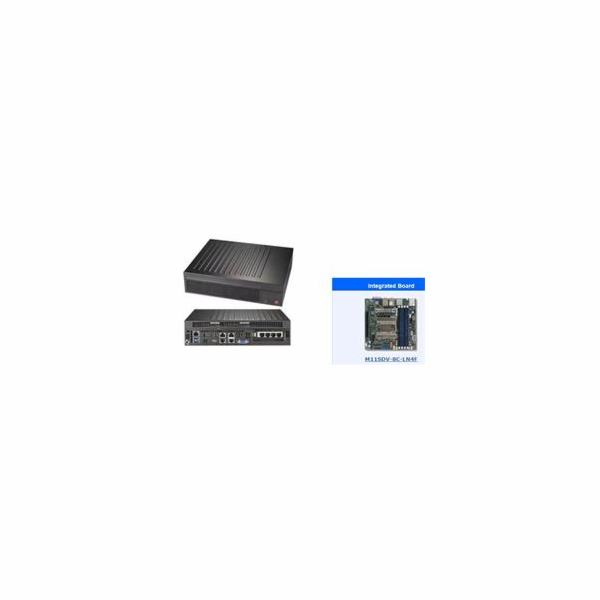

SUPERMICRO A+ mini 1U server Epyc 3251 (8C/16T) 4x DDR4 RDIMM, 2x 2,5, M.2, PCIe x16LP, 4x 1Gb LAN, IPMI

Product SKUs

AS -E301-9D-8CN4 A+ Server E301-9D-8CN4 (Black)



Motherboard


Super M11SDV-8C-LN4F


Processor/Cache

CPU Single AMD EPYC™ 3251 SoC Processor

Cores 8 Core/16 Thread



System Memory

Memory Capacity 4 DIMM slots
Supports up to 512GB Registered RCC DDR4 2666MHz SDRAM in 4 DIMMs
4-channel memory bus

Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors
(using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SATA3 (6Gbps) ports via SoC controller

Network Controllers Quad 1GbE with Intel I350-AM4

IPMI Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics Aspeed AST2500 BMC



Input / Output

SATA SoC controller for 4 SATA3 (6Gbps) ports

LAN 4x 1GbE LAN ports
1 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (rear)

Display 1 VGA port

TPM 1 TPM 2.0 header







Chassis

Form Factor 1.5U Compact Box

Model CSE-E301



Dimensions

Width 10" (254mm) / 15" (381mm) - pkg.

Height 2.6" (66mm) / 10.87" (276mm) - pkg.

Depth 8.9" (226mm) / 5.59" (142mm) - pkg.

Weight Gross Weight: 6.8 lbs (3.08 kg)
Net Weight: 4.93 lbs (2.24 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button

LEDs Power LED (Hard drive activity LED)



Expansion Slots

PCI-Express 1 PCI-E 3.0 x16 AOC slot (LP)
1 M.2 PCI-E 3.0 x4, 2280, M Key



Drive Bays

Internal 2 Fixed 2.5" drive bay bracket, supporting 15mm 2.5" Enterprise drive



System Cooling

Fans 2x 40x28mm 4-PIN PWM Fans
(FAN-0065L4, 13K RPM)



Power Supply

Lockable 12V DC 150W power adapter


System BIOS

BIOS Type AMI 64Mb Flash EEPROM

BIOS Features Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
