SUPERMICRO AOC-S100G-M2C Dual QSFPF28 100Gb/s, Mellanox ConnectX-4EN, PCIe3 x16

Specifications














Add-on Card

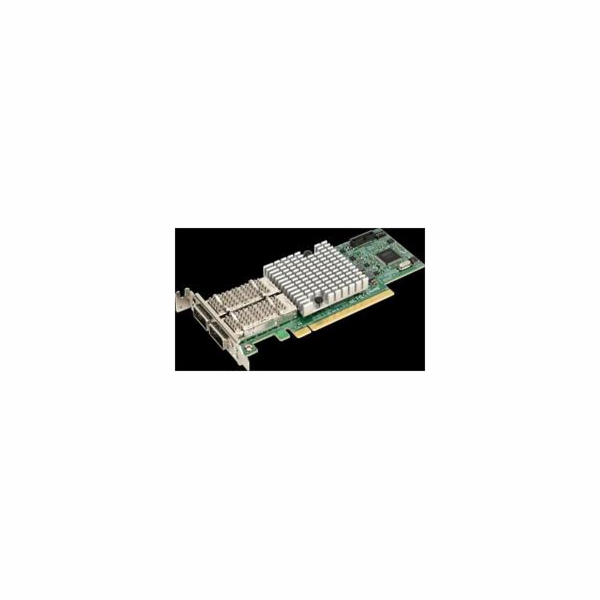

The Supermicro AOC-S100G-m2C provides exceptionally high performance at 100Gb/s Ethernet connectivity. Utilizing the Mellanox ConnectX ® -4 EN chipset with features that such as VXLAN and NVGRE, this card offers network flexibility, high bandwidth with specific hardware offload for I/O virtualization, and efficiently optimizes bandwidth demand from virtualized infrastructure in the data center or cloud deployments. The AOC-S100G-m2C supports the RoCE specification with CPU offload, delivering low-latency and high-efficiency over Ethernet networks. Supermicro ®  Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-m2C is the building block of choice for the next generation of high speed Ethernet data center networks.






This product is only available through Supermicro.













Key Features






• Dual QSPF28 Connectors
• Low-Profile, Short Length Standard Form Factor
• PCI-E 3.0 x16
• Mellanox ConnectX ® -4 EN Ethernet Controller
• Asset Management Features with thermal sensor
• Hardware offloads for VXLAN, NVGRE and GENEVE
encapsulated traffic
• Low latency RDMA over Converged Ethernet (RoCE)
• SR-IOV compliant
• Jumbo Frames support up to 9.6kB
• PXE Support
• Erasure Coding Offload
• NC-SI for IPMI support
• RoHS compliant 6/6










Compliance





RoHS


RoHS Compliant 6/6, Pb Free












Downloads





User's Guide
[  Download  ]


Datasheet
[  Download  ]


Driver
Choose the latest CDR-NIC folder, and then click on Intel & Mellanox folder for driver [  Download  ]


Driver CD
Click on the latest CDR-NIC ISO file to download [  Download  ]






















Specification






•  General

   - Mellanox ConnectX ® -4 EN dual-port 100Gbps controller
   - Compact size low-profile standard form factor
   - PCI-E 3.0 x16 interface
   - Dual QSFP28 connectors
   - Max power consumption: 16.3W

•  Host Interface

   - PCI-E 3.0x16
   - Message Signal Interrupt (MSI-X)

•  Networking Features

   - IEEE 802.2bj, 802.3bm 100 Gigabit Ethernet
   - 25G Ethernet Consortium 25, 50 Gigabit Ethernet
   - IEE 802.3ba 40 Gigabit Ethernet
   - IEEE802.3ae 10 Gigabit Ethernet
   - IEEE802.3az Energy Efficient Ethernet
   - IEEE 802.3ap based auto-engotiation and KR startup
   - IEEE 802.ad, 802.1AX Link Aggregation
   - IEEE 802.1Q, 802.1p VLAN tags and priority
   - IEEE802.1Qau (QCN) – Congestion Notification
   - IEEE 802.1Qaz (ETS)
   - IEEE 802.1Qbb (PFC)
   - IEEE 802.1Qbg
   - IEEE 1588v2
   - Jumbo frame support (9.6KB)

•  CPU Offload Features

   - RDMA over Converged Ethernet (RoCE)
   - TCP/UDP/IP stateless offload
   - LSO, LRO, checksum offload
   - RSS, TSS, HDS, VLAN insertion/stripping. Receive flow
     steering
   - Intelligent interrupt coalescence

•  Storage Offloads

   - RAID offload - erasure coding (Reed-Solomon) offload

•  Overlay Networks

   - Stateless offloads for overlay networks and tunneling protocols
   - Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks

•  Hardware-Based I/O Virtualization

   - Single Root IOV
   - Multi-function per port
   - Address translation and protection
   - Multiple queues per virtual machine
   - Enhanced QoS for vNICs
   - VMware NetQueue support

•  Virtualization Features

   - SR-IOV: up to 256 Virtual Functions
   - SR-IOV: up to 16 Physical Functions per port
   - 1K ingress and egress QoS levels
   - Guaranteed QoS for VMs

•  Operating Systems/Distribution

   - RHEL/CentOS
   - Windows
   - FreeBSD
   - VMware
   - OpenFabrics Enterprise Distribution (OFED)
   - OpenFabrics Windows Distribution (WinOF-2)

•  Management Features

   - Asset Management features with thermal sensor
   - NC-SI for IPMI Support

•  Remote Boot

   - Remote boot over iSCSI
   - PXE and UEFI

•  Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

•  Physical Dimensions

   - Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)
   - Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in)

•  Weight

   - 116.12g (0.2560lb)

•  Supported Platforms

   - Supermicro® motherboards with minimum PCI-E 3.0 x16 expansion slot
   - Supermicro® server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot
   - NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors
