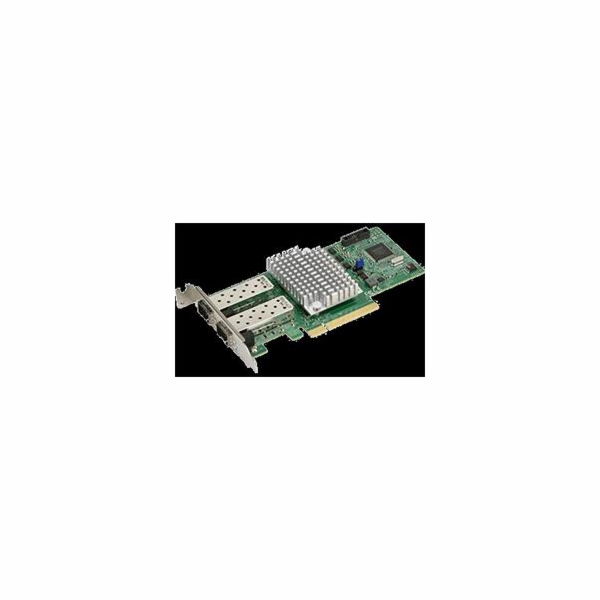

SUPERMICRO Broadcom BCM57414 dual-port 25Gbps controller, 2xSFP28, PCIe x8

Specification







•  General

   - Broadcom BCM57414 dual-port 25Gbps controller

   - Compact size low-profile standard form factor

   - PCI-E 3.0 x8 (8GT/s, 5GT/s or 2.5GT/s) interface

   - Dual SFP28 connectors

   - Typical power consumption: 5.2W



•  Host Interface

   - PCI-E v3.0 (8GT/s)

   - MCTP over SMBus

   - Function Level Reset (FLR) support

   - Message Signal Interrupt (MSI-X)



•  Networking features

   - Jumbo frames (up to 9600-Byte)

   - 802.3x flow control

   - Link Aggregation (802.3ad)

   - Virtual LANs – 802.1q VLAN tagging

   - Configurable Flow Acceleration

   - IEEE 1588 and Time Sync



•  Stateless Offload Features

   - TCP, UDP, IPv4, IPv6 checksum offload

   - Large Send Offload

   - Receive Segment Coalescing

   - TCP segmentation Offload

   - Large Receive Offload

   - Receive Side Scaling (RSS)

   - Transmit Side Scaling (TSS)



•  NIC Partitioning (NPAR)

   - 16 Physical Functions

   - QoS per partition

   - Partitioning control via sideband communication

   - Up to 64 MAC/VLAN filter per partition

   - Per partition statistics support

   - Stateless offloads configuration per partition

   - VEB/VEPA support



•  Virtualization Features

   - NetQueue, VMQueue, and Multiqueue

   - Support for 128 Virtual Functions

   - VXLAN

   - NVGRE

   - Geneve

   - Edge Virtual Bridging (EVB)



•  Flow Processing

   - Exact/Wildcard Match Flow Lookup

   - VLAN insertion/deletion

   - NAT/NAPT

   - Mirroring



•  Data Center Bridging

   - Priority-based flow control (PFC; IEEE 802.1Qbb)

   - Enhanced transmission selection (ETS; IEEE802.1Qau)

   - Quantized congestion Notification (QCN; IEEE802.1Qau)

   - Data Center Bridging Capability eXchange (DCBX;

     IEEE802.1Qaz)

   - 8 traffic classes per port; fully DCB compliant per 802.1Qbb



•  Manageability

   - Network Controller Sideband Interface (NC-SI)

   - PXE v2.1 remote boot

   - Asset Management with Thermal Sensors



•  Power Savings

   - ACPI compliant power management

   - PCI Express Active State Power Management (ASPM)

   - Ultra low-power mode

   - Pass-through Energy Efficient Ethernet (IEEE802.3az-2010)



•  Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C



•  Physical Dimensions

   - Card PCB dimensions: 14.224cm x 6.89cm (5.6in x 2.71in)

      (LxW)

   - Height of end brackets: standard – 12cm (4.725in), low-profile

     – 8cm (3.15in)



•  Weight

   - 90.5g (0.2lb)
